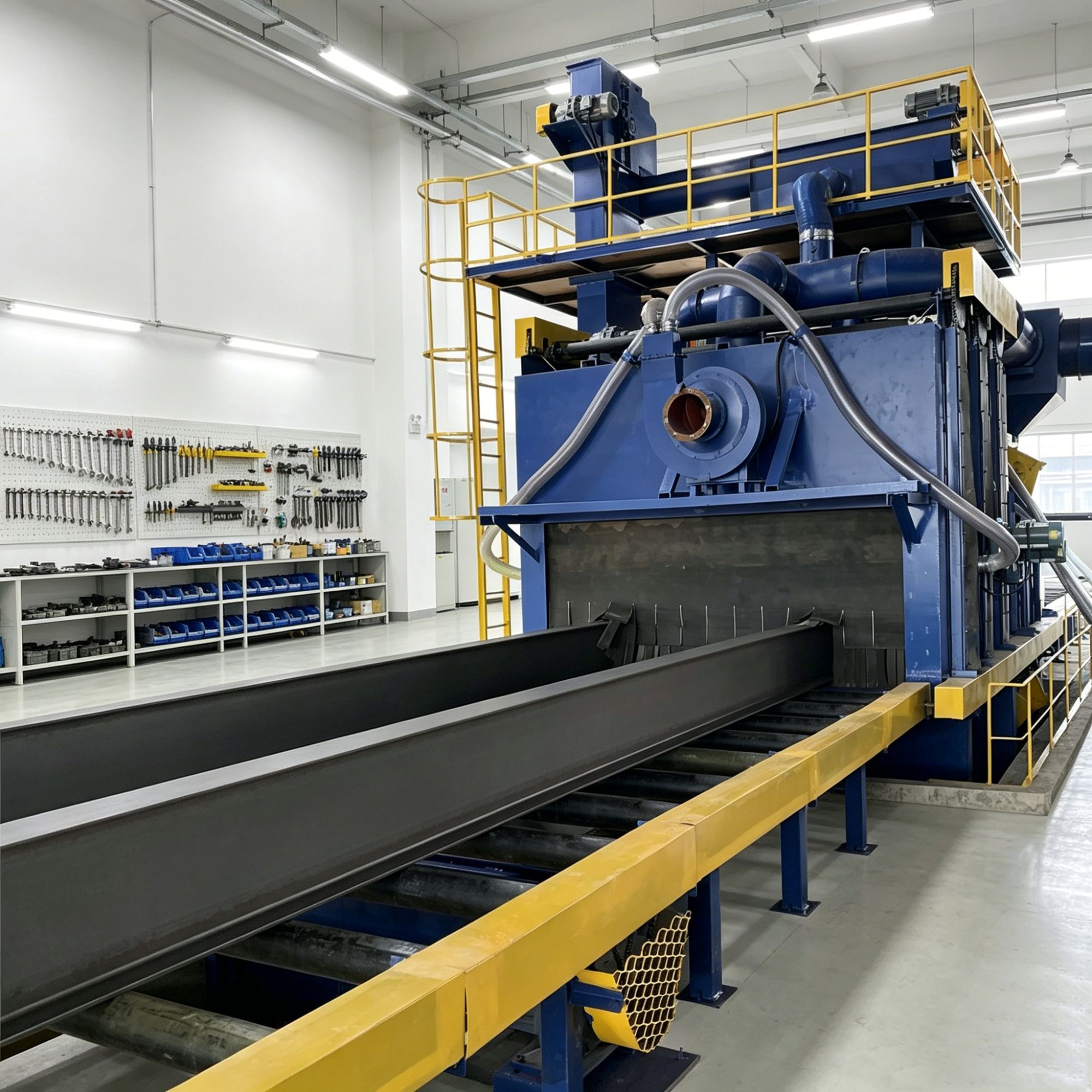

Custom H Beam Shot Blasting Machine Factory: The Ultimate Guide to Efficient Surface Preparation

When it comes to preparing H beams for coating or welding, standard blasting equipment often falls short. That’s where a specialized custom H beam shot blasting machine makes all the difference—tailored to handle complex profiles with speed and precision. In this guide, we’ll explore how PuHua‘s factory-engineered solutions streamline surface preparation, cut downtime, and deliver consistent results that off-the-shelf machines simply can’t match.

Tailoring Blast Cleaning Solutions for H-Beam Profiles

H-beam profiles present unique challenges for surface preparation due to their complex geometry—deep flanges, tight fillets, and varying web thicknesses. Standard blast cleaning setups often miss the inner corners or over-impact flat surfaces, leading to inconsistent profiles and wasted abrasive. A tailored approach starts with mapping the beam's contour and identifying shadow zones where conventional nozzles can't reach.

One effective adaptation involves repositioning blast nozzles at precise angles and distances to match the beam's cross-section. Multi-nozzle arrays, oscillating heads, or robotic manipulators can be programmed to sweep across flanges and webs with controlled overlap, ensuring uniform coverage. Additionally, adjusting air pressure and abrasive flow rates for different areas prevents embedment in softer sections while thoroughly cleaning tougher scaled zones.

Beyond equipment setup, media selection plays a critical role in achieving the desired anchor profile without distorting the metal. For H-beams destined for structural coatings, a blend of angular steel grit and shot often delivers the right etch with minimal dust. Field experience shows that combining these machine adjustments with proper beam handling—such as rotating the profile mid-process—eliminates the need for manual touch-ups, cutting overall cycle time and improving coating adhesion across the entire surface.

Advanced Wheel Designs That Boost Throughput and Cut Costs

Modern manufacturing floors are witnessing a quiet revolution in wheel design, moving far beyond simple round discs. The latest innovations incorporate asymmetric rim profiles and hollow-spoke architectures that redistribute stress more efficiently. By shifting material away from low-load zones and reinforcing high-wear areas, these wheels achieve remarkable weight reductions without sacrificing strength. The result is less rotational inertia, which directly translates to faster acceleration and deceleration cycles in automated systems—shaving crucial milliseconds off every movement.

Material science steps in where geometry leaves off. Composite wheels blending carbon fiber with polyurethane treads now offer a tantalizing combination: the grip needed for precise positioning with the low rolling resistance required for sustained high-speed runs. Some designs even integrate self-lubricating bearings directly into the hub, eliminating a common maintenance bottleneck. In dust-heavy environments, lab-tested tread patterns channel debris outward, preventing the buildup that leads to slippage and premature wear. This isn't just about surviving harsh conditions—it's about maintaining peak performance across the entire lifecycle.

The bottom-line impact is immediate. Reduced wheel mass means smaller motors can be specified, cutting initial equipment cost and energy draw. Vibration damping curves engineered into the rim structure protect sensitive payloads and extend conveyor component life, while quick-swap hub designs slash downtime for replacements. Factories adopting these wheels are recording double-digit throughput gains, often with the side benefit of noticeably quieter operation. In an industry where every second counts, a better wheel isn't just an upgrade—it's a competitive necessity.

Why Dust Collection Matters in Heavy-Section Surface Prep

When you're blasting or grinding thick steel, the amount of dust generated isn't just a nuisance—it's a real safety and quality problem. Without proper extraction, fine particles hang in the air, reducing visibility and coating everything within reach. That airborne grit can get into equipment, causing premature wear on moving parts and electronics. More critically, it poses serious respiratory risks for anyone on the shop floor who isn't fully protected. It's not something you can ignore if you want to keep your crew healthy and your workflow consistent.

Dust collection also plays a direct role in the quality of the surface profile. When contaminants settle back onto the steel between passes, they interfere with coating adhesion and can even create pinpoint rust spots down the line. In heavy-section work, where the stakes are high and rework costs skyrocket, letting dust accumulate is simply bad business. A well-designed extraction setup removes those particles at the source, so each pass of the tool hits clean metal, giving you the consistent anchor pattern needed for long-lasting protective coatings.

Beyond the immediate benefits, effective dust management shapes the entire pace of a project. Shops that rely on sweeping or blow-downs between shifts often lose hours of productive time dealing with the mess. With a system that captures debris as it's produced, you cut down on secondary cleanup and keep the job flowing. It's one of those upgrades that quietly transforms how a team works, reducing fatigue and maintaining focus, because nobody has to fight through a cloud of waste just to do their job right.

From Rust Removal to Coating Adhesion: The Full Process Demystified

Surface preparation is often seen as a preliminary chore, but it’s actually the foundation that decides whether a coating will endure or fail prematurely. Removing rust isn’t just about making metal look clean—it’s about stripping away unstable oxides that can undermine adhesion and create pockets of future corrosion. Mechanical methods like sanding or abrasive blasting physically break rust down, while chemical solutions convert or dissolve it. The right choice depends on the substrate, the extent of rust, and the environment the piece will eventually face. Skipping this step or treating it lightly almost guarantees that even the best paint or sealant will bubble, flake, or peel long before its time.

Once the surface is genuinely clean, the next challenge is creating the ideal profile for mechanical bonding. This isn’t about roughness for its own sake—it’s about providing a consistent tooth that the coating can grip. Too smooth, and the film has nothing to hold onto; too aggressive, and you risk creating stress points or uneven film thickness. Techniques like sugar blasting, wire brushing, or using etch primers on a micro scale can all generate the right texture, but they need to be tuned to the coating’s chemistry. Some coatings, for instance, require a specific peak-to-valley depth or surface energy level to achieve their rated adhesion. Testing a small patch before full application can reveal whether the profile is actually working for you.

Finally, the transition from bare substrate to coated surface must account for environmental conditions that are rarely under perfect control. Humidity, dust, and even the temperature of the metal can sabotage the bond forming at the critical interface. Applying a wash primer or a thin tie-coat immediately after blasting, before hidden flash rusting sets in, can preserve that ideal clean condition. Time windows matter: each product has a maximum interval between preparation and coating, and in demanding settings—like marine or industrial exposure—that window can shrink to minutes. Understanding and respecting these limits turns surface preparation from a checklist item into a deliberate, sequential process that ties rust removal directly to long-term adhesion.

Real-World Performance: Case Studies from Structural Steel Fabricators

When a major bridge rehabilitation project faced unexpected load increases, the fabricator turned to high-strength, weathering steel. The switch not only reduced the overall weight of the structure by 18% but also eliminated the need for a costly paint system, saving the client nearly $2 million in lifecycle costs. This single decision, informed by real-time collaboration between the design team and the shop floor, kept the project on schedule and within budget.

In another instance, a fabricator supplying a 40-story mixed-use tower in a high-seismic zone leveraged advanced Building Information Modeling to resolve 112 clashes before the first beam was cut. By integrating the steel model with the mechanical and electrical systems, they achieved a field fit-up rate exceeding 99%, slashing erection time by three weeks and avoiding the rework that often plagues complex urban builds.

These examples illustrate how structural steel fabricators don't just shape metal—they solve problems. From material substitution that enhances durability to digital workflows that streamline construction, the tangible benefits emerge when experience meets innovation on real job sites.

Key Maintenance Checks to Keep Your Shot Blaster Running Strong

The blast wheel and its components take the brunt of the work, so give them a close look every day. A cracked blade or a worn control cage doesn’t just reduce cleaning power—it can throw abrasive in all the wrong directions, gouging the cabinet lining and damaging nearby parts. Replacing a set of blades early is far cheaper than patching up collateral damage later. Don’t forget the impeller and the feed spout; uneven wear there chokes abrasive flow and leads to hot spots on the wheel.

Abrasive circulation is the heartbeat of the machine, yet it’s often overlooked until performance tanks. Check the hopper screens for debris that sneaks past—spent media, rust flakes, even the occasional forgotten tool. The air wash separator needs steady airflow to strip out fines; a clogged dust collector quickly turns good abrasive into dust, forcing you to top up more frequently and harming the finish. Keep an eye on metering valve settings, too. If the mix is too rich, you waste media and overwhelm the reclaim system; too lean, and you’ll run the parts longer to hit the spec.

Seals, curtains, and liners are the unsung guardians that keep abrasive where it belongs. Once a rubber curtain stiffens or a door seal tears, dust and shot start escaping into the shop, creating a mess and a breathing hazard. Cabinet liners—especially near the blast zone—take repeated hits; when they wear thin, the cabinet shell itself becomes a target. Poke at suspect spots with a screwdriver—if it punctures easily, it’s time for a new liner. A quick check of dust collector pulse jets and differential pressure gauges also tells you whether the filter bags are holding up or slowly choking the system.

FAQ

Conclusion

A custom H beam shot blasting machine factory doesn’t just deliver equipment—it engineers a complete surface preparation system built around the unique geometry of structural steel. H-beam profiles demand more than standard blast cleaning; their web, flanges, and inner corners require tailored blast patterns that hit every surface uniformly. Factories with deep expertise in H-beam processing design machines with adjustable wheel positioning, ensuring abrasive streams reach recessed areas without clogging or shadowing. Advanced wheel technology boosts throughput significantly—direct-drive blast wheels with curved blades maximize abrasive velocity while cutting energy consumption, slashing operational costs by up to 30% compared to conventional units. These high-efficiency wheels are paired with intelligent abrasive recycling systems that separate contaminants in real time, keeping media consumption low and surface profiles consistent from the first beam to the last. The result is a line that strips rust, mill scale, and stubborn coatings fast, leaving a clean, angular anchor pattern that coating inspectors love.

But a great shot blaster goes beyond just throwing abrasive—it creates the conditions for flawless coating adhesion. The full process integrates rust removal, profiling, and dust extraction into one seamless flow, and this is where heavy-duty dust collection becomes non-negotiable. Effective cartridge-style collectors capture fine metallic dust and spent abrasive before it resettles on cleaned surfaces or fouls moving parts, preserving both finish quality and equipment longevity. Real-world case studies from steel fabricators show that a well-tuned custom machine can double production output while eliminating rework caused by poor surface prep. To keep that performance edge, routine maintenance checks are critical: inspecting blast wheel liners for wear, monitoring abrasive valve settings, and verifying dust collector pressure differentials can prevent hours of unscheduled downtime. The combination of tailored design, robust engineering, and proactive upkeep makes a custom H beam shot blasting factory a true partner in efficient, high-quality structural steel manufacturing.
